Polypropylene PVC Pelletizing Machine For Waste Plastic Recycling
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | JXDW-90 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | JXDW-90 | Output: | 200m/min+150kg/h |
| Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
| Feature: | Cold-extruded | High Light: | Polypropylene PVC Pelletizing Machine,Waste PVC Pelletizing Machine,Waste polypropylene recycling machine |
Product Description

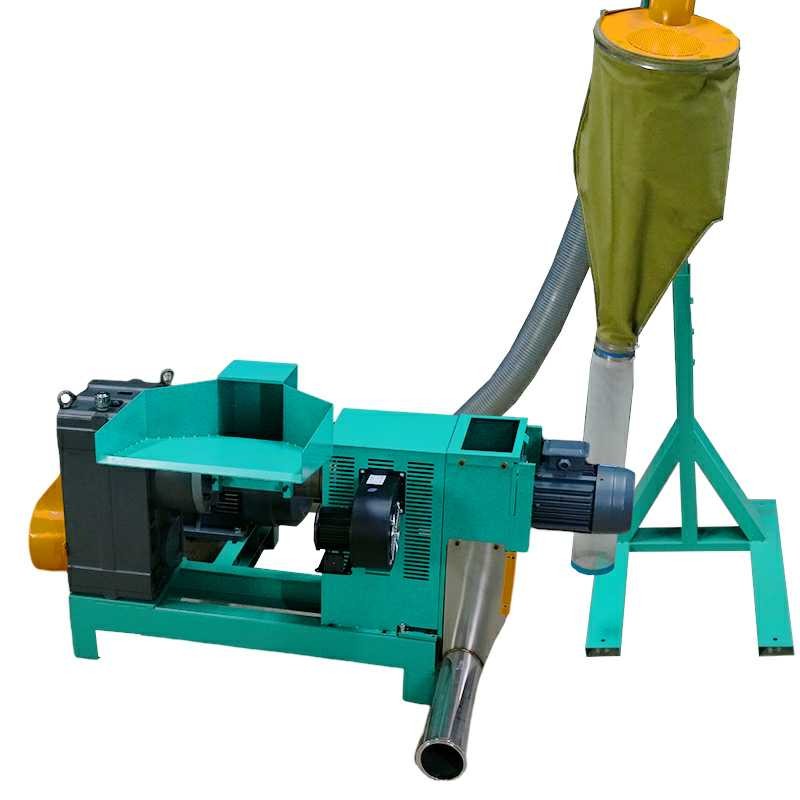

Polypropylene PVC Pelletizing Machine For Waste Plastic Recycling
PET bottle pelletizer granulator machine
Application:
This granulator Machine has good stability, high efficiency and applicability.It is specially used for recycling and granulation of leftovers and waste materials of PE,PO,PVC,EVA,non-woven fabric and other plastics.
Structure:
The components of the Pelletizer granulator Machine are: electrical parts,transmission parts,feeding parts,extrusion parts,pelleting parts and recycling parts.
Features:
1.The granulator Machine does not need preheating during operation. It can be used immediately after startup.The operation is simple,it only needs to lead the raw material into the feed inlet.
2,The granulator Machine is space saving and low energy consumption.It soften the materials by simply rotating a single screw, extruding the die head,and cut out the same particles as the raw material.
3.The granulator Machine does not heat, neither change the molecular structure of the material during production.The usage rate is very high,and the output can reach to 60-120Kg/h.
4.The granulator Machine is smoke free and dust-free, with extremely low noise and environmental protection.
| Parameter | |
| Model | JXDW-90 |
| Total Power | 17KW |
| Output | ≈90kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 1800x1450x800 |
| Weight | ≈800kg |
| Screw | 90 |
| Reducer | 173 |
| Pelletizing Motor | 0.75W |
| Extrusion Motor | 15KW |
| Inverter | 15KW+1.5KW |
