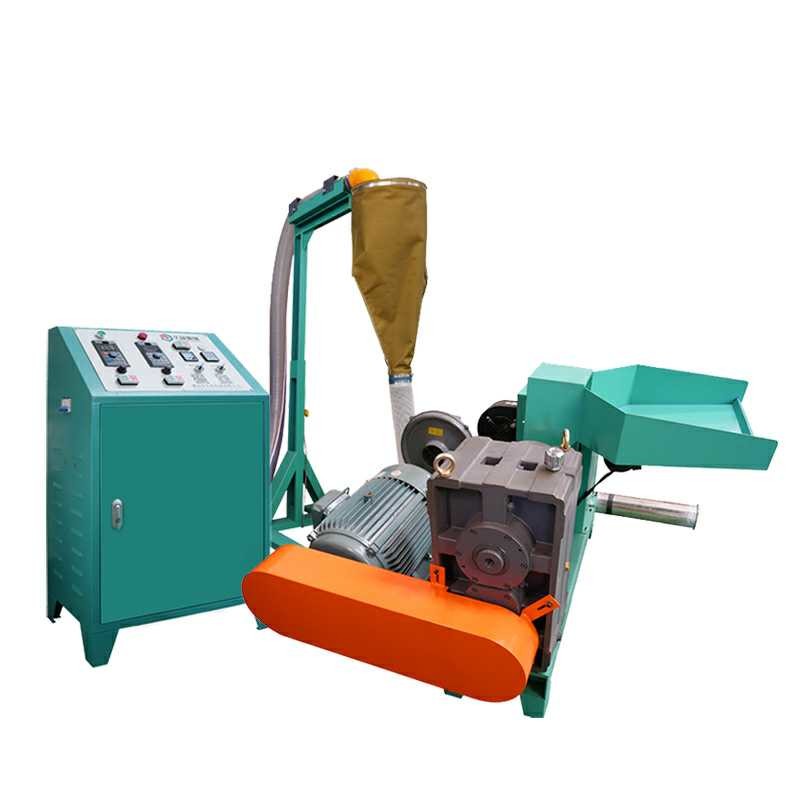

Low Speed Waste Polystyrene Recycling Equipment Plastic Shredder Granulator

Low Speed Waste Polystyrene Recycling Equipment Plastic Shredder Granulator

Advantages PET bottle pelletizer granulator machine

l Special barrel design can assure better compounding effect so as to improve the problem of black point and chromatism

l Equipped with a force feeder and hydraulic screen changers according to material’s special character, it can get a better capacity and save more power.

l Vacuum or common gas exhaust system, which fascinates getting rid of damp, waste gas, impurity, and ensure a more stable extrusion and more solid pellets.

l Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, system etc., to meet different requirements of feeding, such as powder, pellet, lump and liquid material.

l GEAR TRANSMISSION SYSTEM:

New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and torque get together, which keep it compact, and the key bearings are import.

The computer designs to optimize gear parameters and strengthen safe over measure.

Features

PET Bottle Pelletizing Line adopts traditional Relay Electrical Control. Temperature control is Advanced Digital Temperature Control Form PID Adjustment. The main engine and feeding implementation are interlock controlled. The operator panel has a heating and disconnection alarm and main aircraft operation, alarm indication, etc.

PET Bottle Pelletizing Line characteristics:

1.Treated PET bottle flakes are pelletized after washing, and moisture content is within 5%.

2.Three segments and Roots Vacuum Pump, with good exhaust effect.

3.PET Bottle Pelletizer is a Double-screw Extruder with excellent mixing properties, good self-washing, flexible modular combination characteristics. PET Bottle Pelletizing Machine does not require a complex Pre-crystallized drying system, achieving ideal PET viscosity control, low IV decline, adding suitable auxiliaries to achieve increasing adhesion.

Other benefits

Lower investment cost for a high quality and durable machine;

Low energy consumption with high production output;

Fast machine delivery and installation: JIUXIN produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers.

The regular delivery time of an JIUXIN recycling machine is 30 working days.

Service and support

Overseas installation and training are available;

Machine warranty with spares in stocking and in-time delivery.

JIUXIN compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step. Applied in the plastics recycling and pelletizing process. Our system is a reliable and efficient solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.

Final productions produced by compacting and pelletizing system are in the form of pellets/granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc.

Feeding:

As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method.

Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section.
