LLDPE Polyethylene Plastic Pelletizer Machine Crusher Granulator
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | JXDW-150 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | JXDW-150 | Output: | 200m/min+150kg/h |
| Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
| Feature: | Cold-extruded | High Light: | polyethylene Plastic Pelletizer Machine,Plastic Pelletizer Machine Granulator,Polyethylene plastic crusher granulator |
Product Description

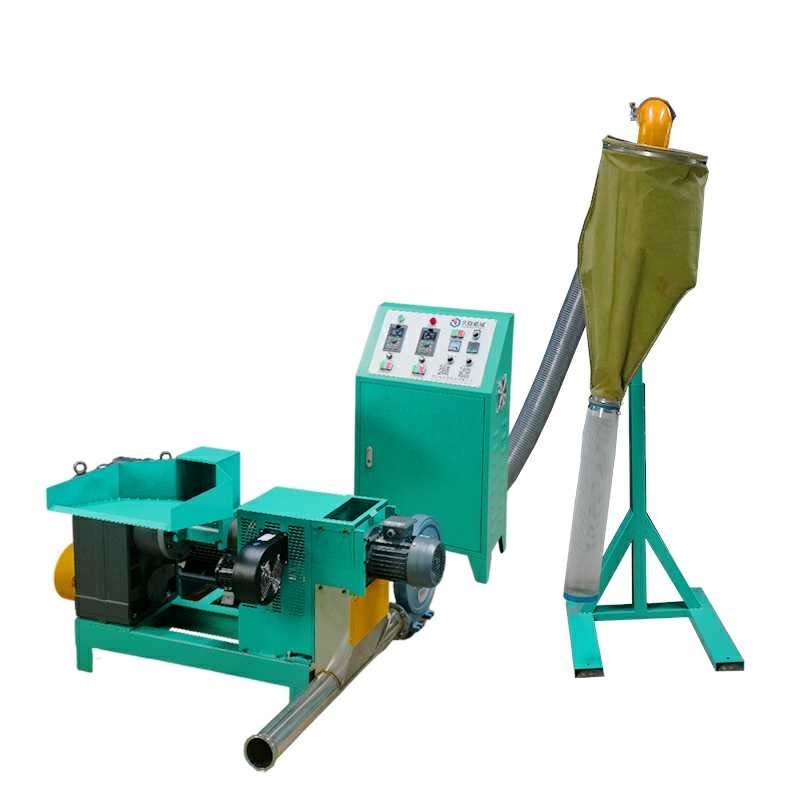

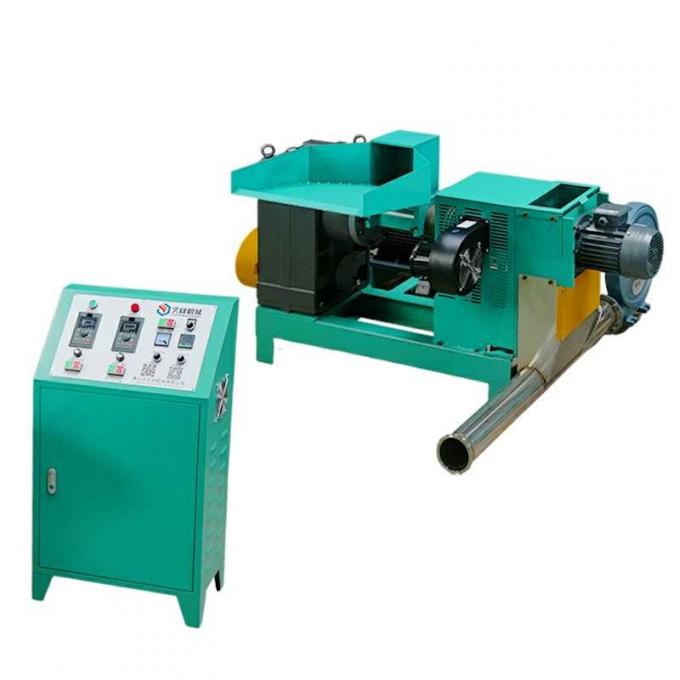

LLDPE Polyethylene Plastic Pelletizer Machine Crusher Granulator
The extruded plastic particles are uniform, beautiful and transparent
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation
Cool the soft plastic strip extruded from the plastic granulator to make it hard, and then it can be cut into granules
Made of stainless steel, it can ensure no rust and corrosion when in contact with water for a long time
The whole machine has good sealing performance, less leakage and convenient adjustment of cutting distance
The hob is made of carbide with high wear resistance
| Parameter | |
| Model | JXDW-150 |
| Total Power | 34KW |
| Output | ≈200kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 2450x1050x1500 |
| Weight | ≈1500kg |
| Screw | 150 |
| Reducer | 250 |
| Pelletizing Motor | 1.5W |
| Extrusion Motor | 45KW |
| Inverter | 45KW+1.5KW |
