14KW Extruding Plastic Film Pelletizing Machine Bottle Granulator
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | DW-75 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | DW-75 | Output: | 200m/min+150kg/h |
| Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
| Feature: | Cold-extruded | High Light: | 14KW film pelletizing machine,Extruding film pelletizing machine,Extruding plastic bottle granulator |
Product Description

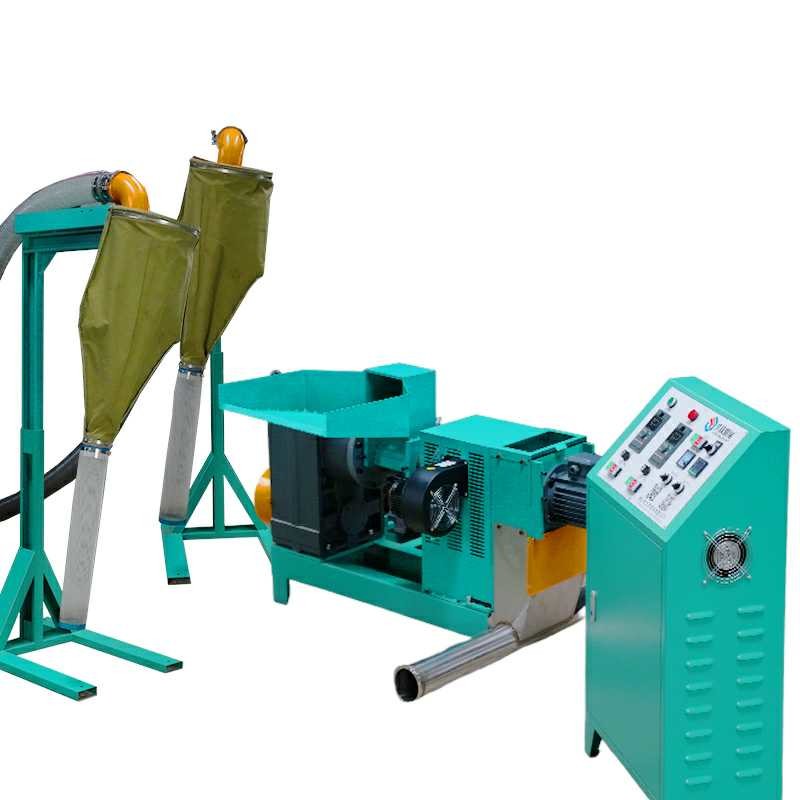

14KW Extruding Plastic Film Pelletizing Machine Bottle Granulator
Features:
1.The Plastic Film Pelletizing Machine does not need preheating during operation. It can be used immediately after startup.The operation is simple,it only needs to lead the raw material into the feed inlet.
2,The Plastic Film Pelletizing Machine is space saving and low energy consumption.It soften the materials by simply rotating a single screw, extruding the die head,and cut out the same particles as the raw material.
3.The machine does not heat, neither change the molecular structure of the material during production.The usage rate is very high,and the output can reach to 60-120Kg/h.
4.The Plastic Film Pelletizing Machine is smoke free and dust-free, with extremely low noise and environmental protection.
Other benefits
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation: JIUXIN produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an JIUXIN recycling machine is 30 working days.
Service and support
Overseas installation and training are available;
Machine warranty with spares in stocking and in-time delivery.
| Parameter | |
| Model | DW-75 |
| Total Power | 14KW |
| Output | ≈60kg/h |
| Power Supply | AC380V 50Hz TN-S |
| Dimension | 1650x1300x650 |
| Weight | ≈700kg |
| Screw | 75 |
| Reducer | 146 |
| Pelletizing Motor | 0.75W |
| Extrusion Motor | 11KW |
| Inverter | 11KW+1.5KW |
