Automatic Polyester EVA Plastic Film Granulator Equipment

Product Details
Place of Origin: China
Brand Name: JIUXIN
Model Number: JXDW-90
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Package
Delivery Time: 48hrs
Payment Terms: T/T,L/C
Supply Ability: 20

Detail Information

Place of Origin China Brand Name JIUXIN
Model Number JXDW-90 Output: 200m/min+150kg/h
Motor Power: 3kw-7.5kw Material: CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE
Feature: Cold-extruded High Light:

polyester Plastic Film Granulator

,

EVA Plastic Film Granulator

,

EVA plastic automatic granulator

Product Description

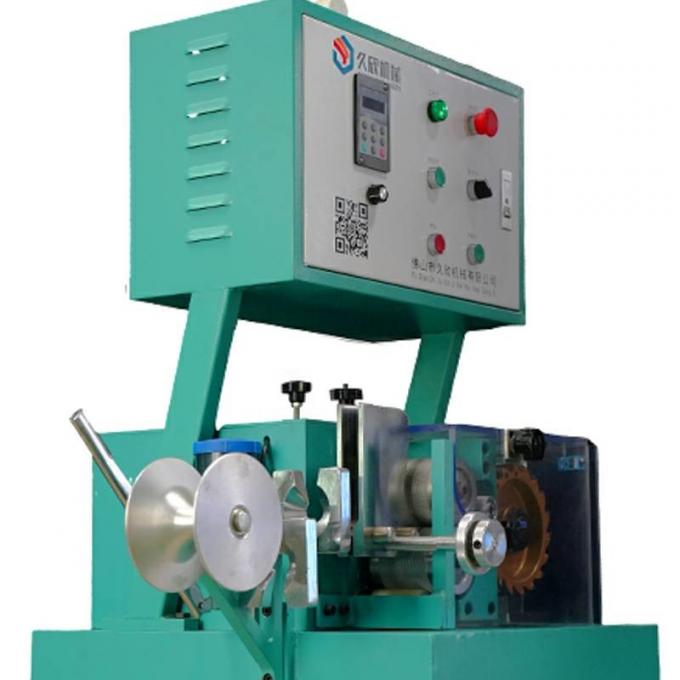

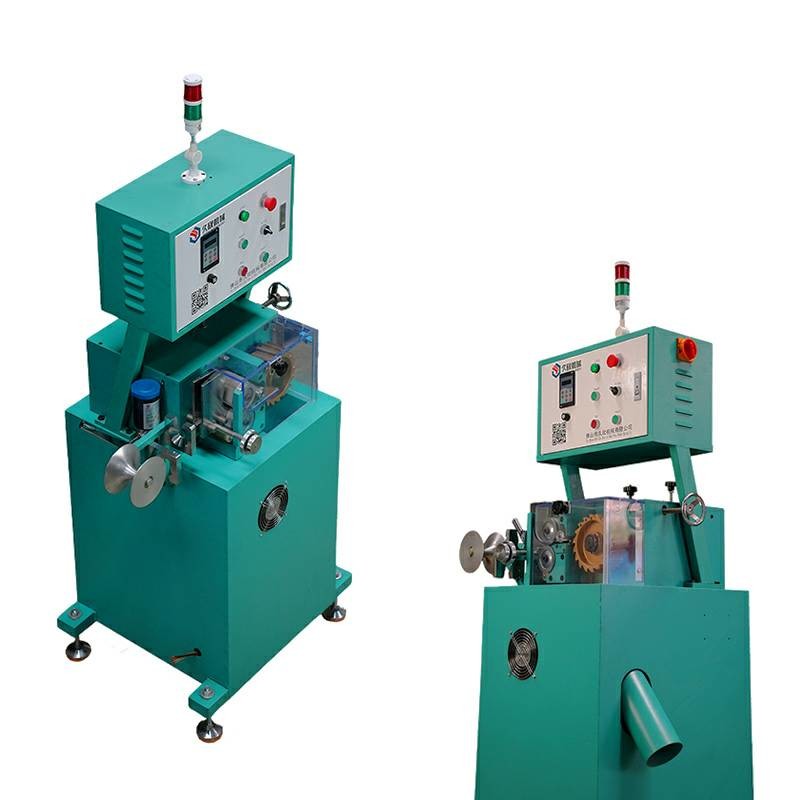

Automatic Polyester EVA Plastic Film Granulator Equipment



The extruded plastic particles are uniform, beautiful and transparent

Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation

The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process

Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation

Cool the soft plastic strip extruded from the plastic granulator to make it hard, and then it can be cut into granules

Made of stainless steel, it can ensure no rust and corrosion when in contact with water for a long time

The Plastic Film Granulator Equipment has good sealing performance, less leakage and convenient adjustment of cutting distance

The hob is made of carbide with high wear resistance

The Plastic Film Granulator Equipment is designed without gears, which can effectively reduce the noise of the machine

The Independent electric box is convenient, safe, and beautiful

Made of stainless steel, the storage tank and the wind-blown bin are combined into one, occupying less space and saving labor.

The size of the storage tank can be customized according to customer requirements

Can be connected with various granulators, easy to move

Small fan power, fast feeding speed, cost-saving

Hopper can be disassembled for easy cleaning



Application:

This Plastic Film Granulator Equipment has good stability, high efficiency and applicability.It is specially used for recycling and granulation of leftovers and waste materials of PE,PO,PVC,EVA,non-woven fabric and other plastics.





Parameter
Model JXDW-90
Total Power 17KW
Output ≈90kg/h
Power Supply AC380V 50Hz TN-S
Dimension 1800x1450x800
Weight ≈800kg
Screw 90
Reducer 173
Pelletizing Motor 0.75W
Extrusion Motor 15KW
Inverter 15KW+1.5KW



Automatic Polyester EVA Plastic Film Granulator Equipment 0
