Plastic PVC Pelletizing Line Granulator machine 3kw-7.5kw
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | DW-75 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | DW-75 | Output: | 200m/min+150kg/h |
| Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
| Feature: | Cold-extruded | High Light: | Plastic pvc pelletizing line,3kw pvc pelletizing line,Pelletizing pvc granulator |
Product Description

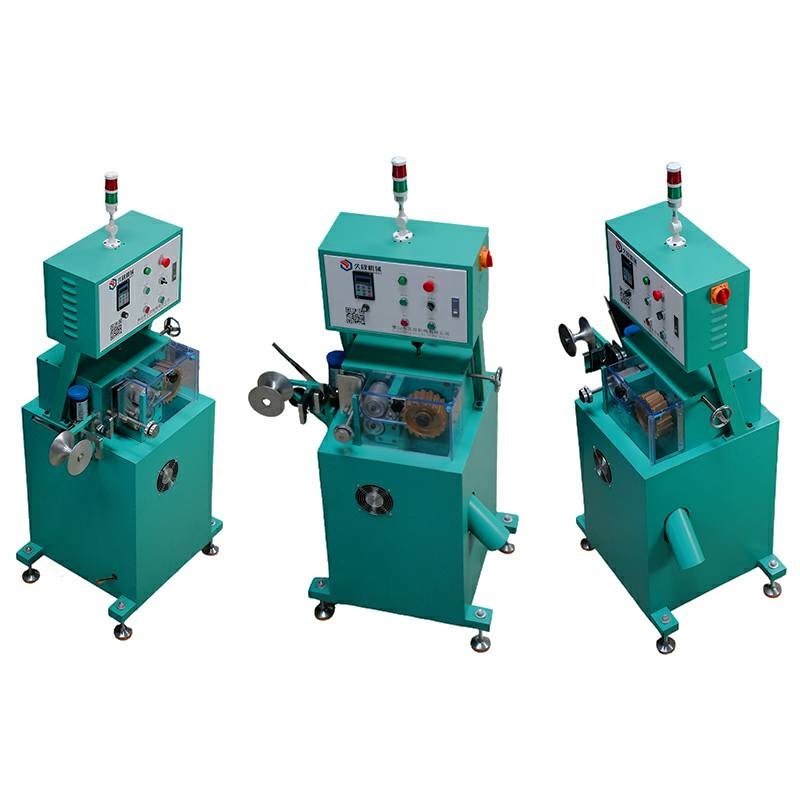

Plastic PVC Pelletizing Line Granulator Machine 3kw-7.5kw
Application:
This PVC Pelletizing Line has good stability, high efficiency and applicability.It is specially used for recycling and granulation of leftovers and waste materials of PE,PO,PVC,EVA,non-woven fabric and other plastics.
Other benefits
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation: JIUXIN produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an JIUXIN recycling machine is 30 working days.
Service and support
Overseas installation and training are available;
Machine warranty with spares in stocking and in-time delivery.
JIUXIN compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step. Applied in the plastics recycling and pelletizing process. Our system is a reliable and efficient solution for plastics films, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
Final productions produced by compacting and pelletizing system are in the form of pellets/granules, can directly put into the production line for film blowing, pipe extrusion and plastics injection, etc.
Feeding:
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method.

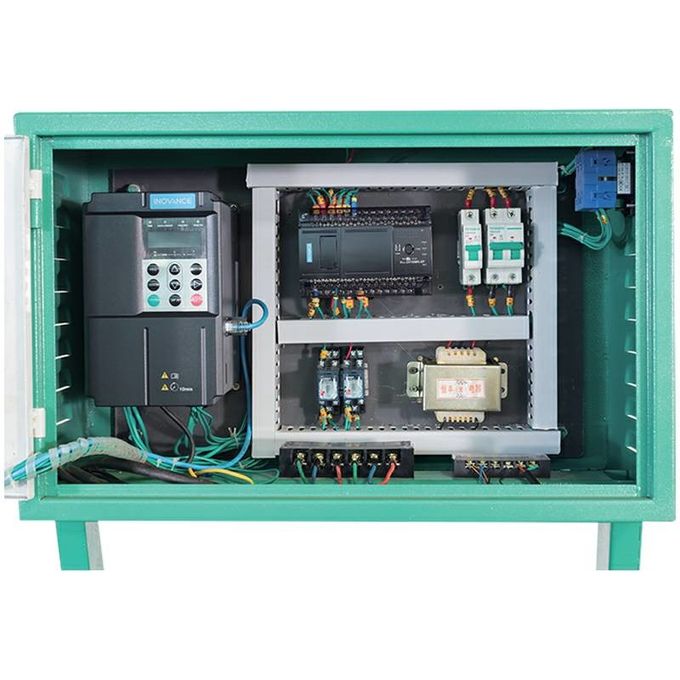

Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is. Metal detector can be combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal is found in feeding section.
|
