Polythene BOPA CPE Non Woven Recycling Machine Granulator
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | JX68-B |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | JX68-B | Output: | 60-120Kg/h |
| Motor Power: | 13KW | Material: | PE,PP,PO,PVC, EVA,non-woven Fabrics |
| Feature: | Cold-extruded | High Light: | CPE Non Woven Recycling Machine,BOPA Non Woven Recycling Machine,CPE polythene recycling machine |
Product Description

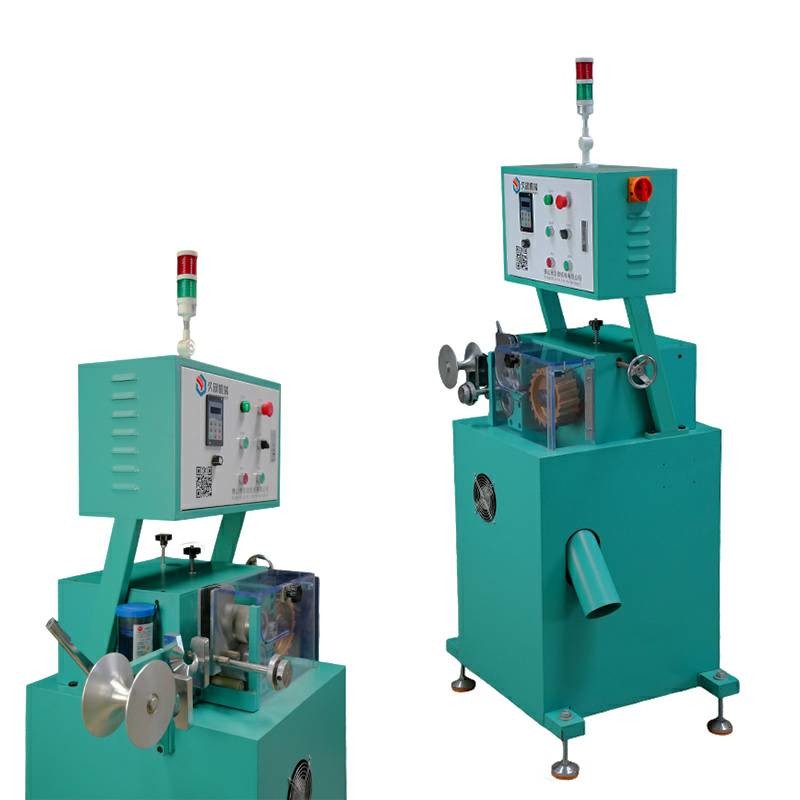

Polythene BOPA CPE Non Woven Recycling Machine Granulator
Application:
The design of this Non Woven Recycling machine has good reliability, maintenance and stability.It is specially for granulation recovery of CPE.CPP. PE. PO, PP, BOPA, PET, PVC and other thin film edges.
Structure:
The Non Woven Recycling machine consists of the following components:
electric mechanism, feeding mechanism, pressing device, transmission system and shear component.
The extruded plastic particles are uniform, beautiful and transparent
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation
Cool the soft plastic strip extruded from the plastic granulator to make it hard, and then it can be cut into granules
Made of stainless steel, it can ensure no rust and corrosion when in contact with water for a long time
The whole machine has good sealing performance, less leakage and convenient adjustment of cutting distance
The hob is made of carbide with high wear resistance
The whole machine is designed without gears, which can effectively reduce the noise of the machine
Made of stainless steel, the storage tank and the wind-blown bin are combined into one, occupying less space and saving labor.
The size of the storage tank can be customized according to customer requirements
Can be connected with various granulators, easy to move
Small fan power, fast feeding speed, cost-saving
Hopper can be disassembled for easy cleaning
| Parameter | |
| Power | 5.5KW |
| Output | ≈150m/min |
| Input | 3-P 5-1 AC380V 50Hz |
| Weight | ≈410kg |
| Dimension | 1050x630x1700 |
| Motor | Simens |
| Inverter | Simens |
| Rotary Cutter | Sougan |
| Bearing | SKF |
| Belt | FF |
Other benefits
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation: JIUXIN produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an JIUXIN recycling machine is 30 working days.
