ODM EVA PE Pelletizing Machine Plastic Granulator Extruder
| Place of Origin: | China |
| Brand Name: | JIUXIN |
| Model Number: | JX68-B |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Wooden Package |
| Delivery Time: | 48hrs |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | JIUXIN |
|---|---|---|---|
| Model Number | JX68-B | Output: | 60-120Kg/h |
| Motor Power: | 13KW | Material: | PE,PP,PO,PVC, EVA,non-woven Fabrics |
| Feature: | Cold-extruded | High Light: | ODM pe pelletizing machine,pe pelletizing machine Extruder,plastic granulator Extruder |
Product Description

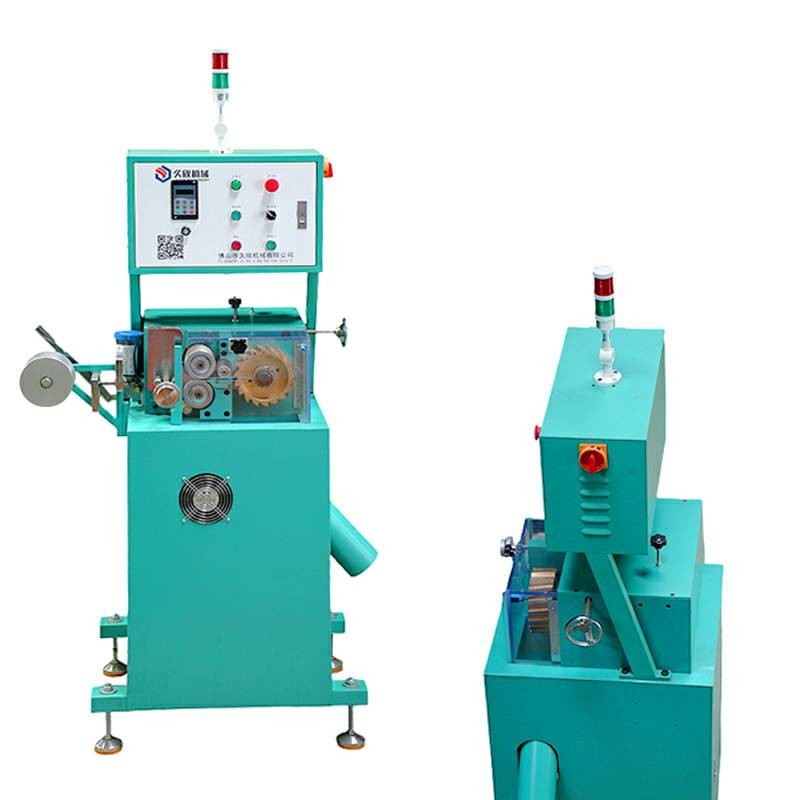

ODM EVA PE Pelletizing Machine Plastic Granulator Extruder
The extruded plastic particles are uniform, beautiful and transparent
Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation
The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process
Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation

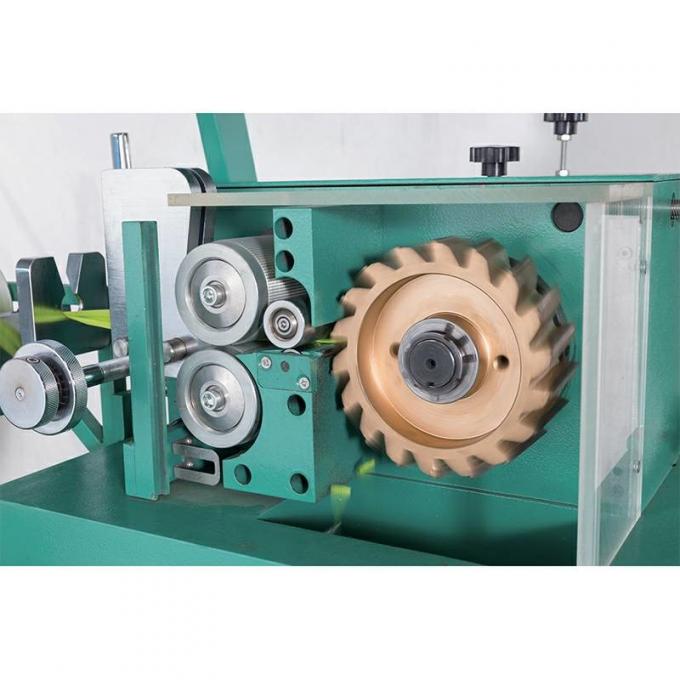

Cool the soft plastic strip extruded from the plastic granulator to make it hard, and then it can be cut into granules
Made of stainless steel, it can ensure no rust and corrosion when in contact with water for a long time
The whole Plastic Granulator Machine has good sealing performance, less leakage and convenient adjustment of cutting distance
The hob is made of carbide with high wear resistance
The whole machine is designed without gears, which can effectively reduce the noise of the machine
Working Principle:
1,Working with the film making machine:
During the processing of film,the scraps sent out by the film making machine will be transferred to the transaction mechanism of the granulator immediately.The extrusion mechanism partially melts the scraps and extrudes them to the mold.The granulation mechanism cuts them into average particles,which are then inhaled by the feeding cooling mechanism and sent to the cooling pipe.Finally,they are sent to the customer collection device to complete the recycling procedure.
2,For slitting machine:
Roll the leftover onto the paper core and send them into granulator for granulating.
| Parameter | |
| Power | 5.5KW |
| Output | ≈150m/min |
| Input | 3-P 5-1 AC380V 50Hz |
| Weight | ≈410kg |
| Dimension | 1050x630x1700 |
| Motor | Simens |
| Inverter | Simens |
| Rotary Cutter | Sougan |
| Bearing | SKF |
| Belt | FF |
Other benefits
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation: JIUXIN produces on an average of 10 sets of plastic machines per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an JIUXIN recycling machine is 30 working days.
