Place of Origin: | China |
Brand Name: | JIUXIN |
Model Number: | DW-75 |
Minimum Order Quantity: | 1 |
Price: | negotiation |
Packaging Details: | Wooden Package |
Delivery Time: | 48hrs |
Payment Terms: | T/T,L/C |
Supply Ability: | 20 |
Detail Information |
|||
Place of Origin | China | Brand Name | JIUXIN |
---|---|---|---|
Model Number | DW-75 | Output: | 200m/min+150kg/h |
Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
Feature: | Cold-extruded | High Light: | Recycling Hdpe Plastic Film Pelletizing Machine,hdpe Plastic Film Pelletizing Machine,Plastic hdpe recycling machine |

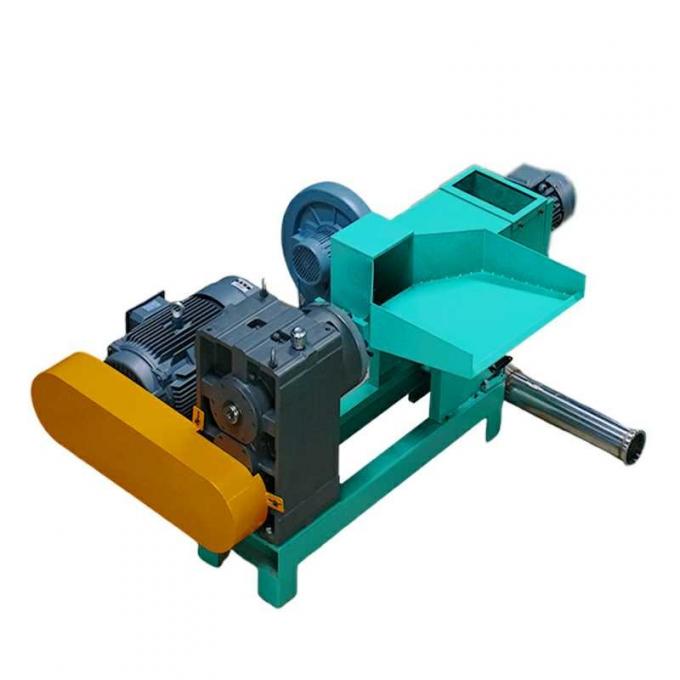

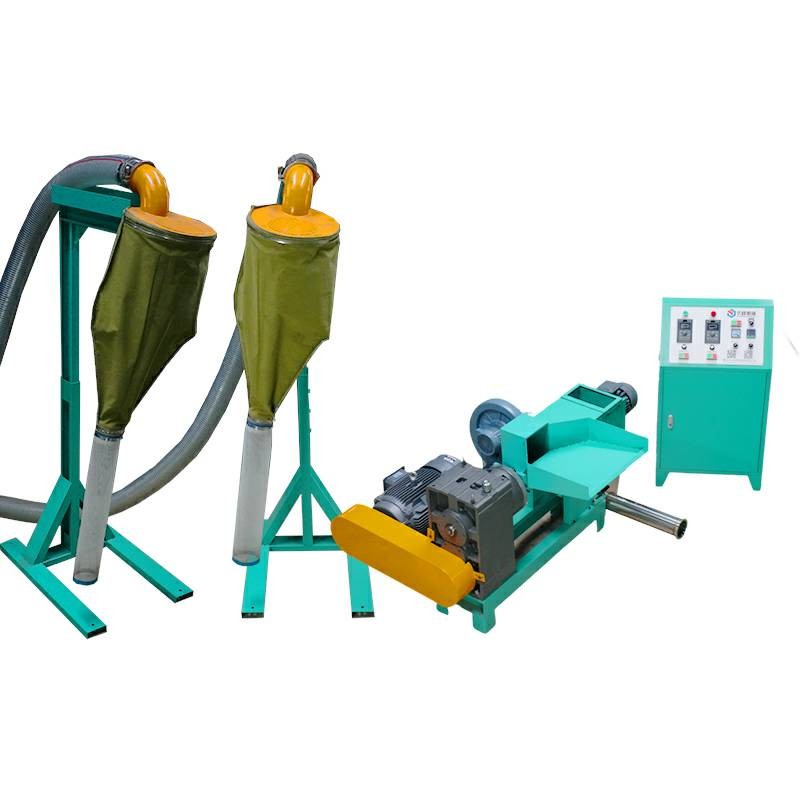

Recycling Hdpe Plastic Film Pelletizing Machine 150kg/H
Advantages:
1,The granulator can be used continuously and the failure rate is almost zero.Granulation is fast, and the output can reach to 60-120Kg/h.
2,The equipment is suitable for processing the leftovers,rolls, bulk materials and other wastes of various materials such as PE,PP,PO,PVC, EVA,non-woven fabrics, etc. It can be used alone or synchronously with film blowing unit and film casting unit.
3,The granulation process is not heated and without water.The particle size can be controlled to be the same as that of raw materials,and the utilization rate is extremely high.
4,The equipment can be used immediately after startup without preheating.The operation is simple,and it only needs to put the raw material into the feeding port.
5,The equipment is space saving and energy saving,the total power is only 13KW.It is also eco-friendly,smokeless,smelless,low noise and no water during production.
6,The equipment is made of high strength metal accessories,famous brand electronic elements and high precision assembly.We also have strictly QC department to check the equipment before shipping.
Application:
This machine has good stability, high efficiency and applicability.It is specially used for recycling and granulation of leftovers and waste materials of PE,PO,PVC,EVA,non-woven fabric and other plastics.
Structure:
The components of the equipment are: electrical parts,transmission parts,feeding parts,extrusion parts,pelleting parts and recycling parts.
Parameter | |
Model | DW-75 |
Total Power | 14KW |
Output | ≈60kg/h |
Power Supply | AC380V 50Hz TN-S |
Dimension | 1650x1300x650 |
Weight | ≈700kg |
Screw | 75 |
Reducer | 146 |
Pelletizing Motor | 0.75W |
Extrusion Motor | 11KW |
Inverter | 11KW+1.5KW |
