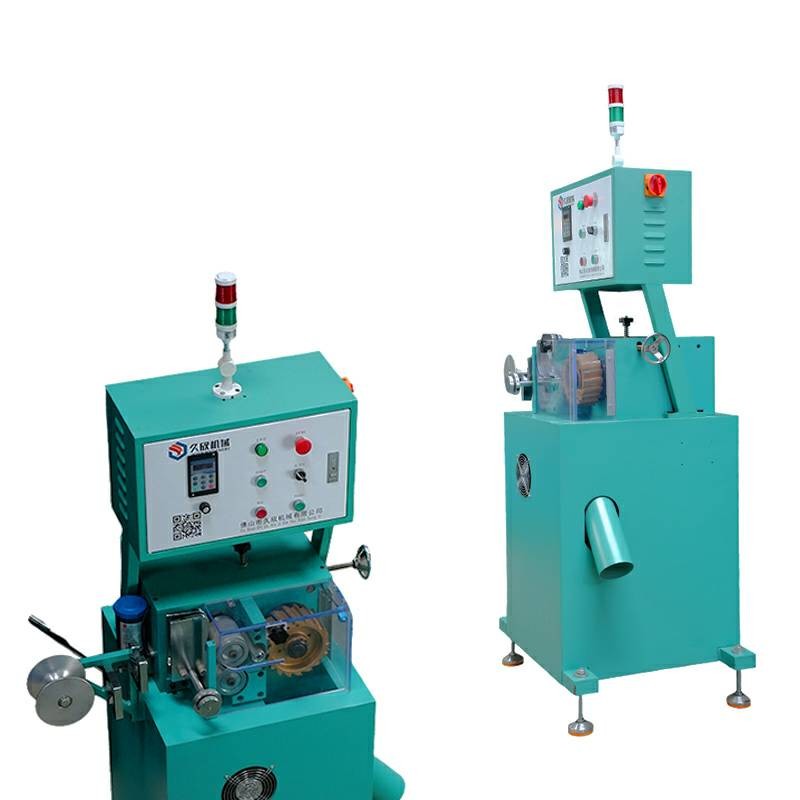

HDPE LDPE PE Film Granulator Pelletizing Machine For Plastic Recycling

Product Details
Place of Origin: China
Brand Name: JIUXIN
Model Number: JX68-A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Package
Delivery Time: 48hrs
Payment Terms: T/T,L/C
Supply Ability: 20

Detail Information

Place of Origin China Brand Name JIUXIN
Model Number JX68-A Output: 200m/min+150kg/h
Motor Power: 3kw-7.5kw Material: CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE
Feature: Cold-extruded High Light:

HDPE PE Film Granulator

,

Recycling PE Film Granulator

,

pelletizing machine for plastic recycling

Product Description

HDPE LDPE PE Film Granulator Pelletizing Machine For Plastic Recycling



Features:

Two-stage tandem exhaust granulation unit is widely used in the recycling and granulation of various types of plastics such as (LDPE), (HDPE), (PP).

Adopt automatic temperature control, electromagnetic heating, less electricity consumption, no pollution, high degree of automation

The special design of the exhaust port can effectively remove the moisture and volatile gas generated during the material melting process

Adopt advanced low-noise hard tooth surface belt forced lubrication reducer to ensure that the main engine adapts to high-speed continuous operation

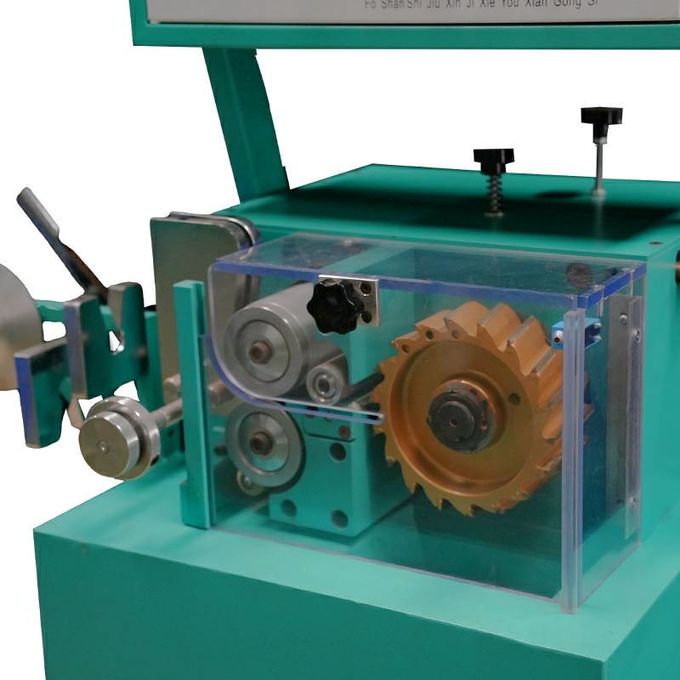

The blade is an alloy steel blade that can be re-sharpened for durability.

Sealed design, the casing body is all welded with thick steel plates.

The body adopts a separate design, which is easy to repair and clean;

Double-layer structure, equipped with sound insulation materials, the noise is very low;

The drive equipment adopts the medium-speed motor, low speed, and low energy consumption;

The motor is equipped with an overload protection device and a power supply chain protection system;



Parameter
Power 5.5KW
Output ≈150m/min
Input 3-P 5-1 AC380V 50Hz
Weight ≈410kg
Dimension 1050x630x1700
Motor Simens
Inverter Simens
Rotary Cutter Sougan
Bearing SKF
Belt FF



HDPE LDPE PE Film Granulator Pelletizing Machine For Plastic Recycling 0HDPE LDPE PE Film Granulator Pelletizing Machine For Plastic Recycling 1
