Place of Origin: | China |
Brand Name: | JIUXIN |
Model Number: | JX68-A |
Minimum Order Quantity: | 1 |
Price: | negotiation |
Packaging Details: | Wooden Package |
Delivery Time: | 48hrs |
Payment Terms: | T/T,L/C |
Supply Ability: | 20 |
Detail Information |
|||
Place of Origin | China | Brand Name | JIUXIN |
---|---|---|---|
Model Number | JX68-A | Output: | 200m/min+150kg/h |
Motor Power: | 3kw-7.5kw | Material: | CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE |
Feature: | Cold-extruded | High Light: | Polyester waste plastic recycling equipment,waste plastic recycling equipment Granulator,pet plastic recycling machine Granulator |

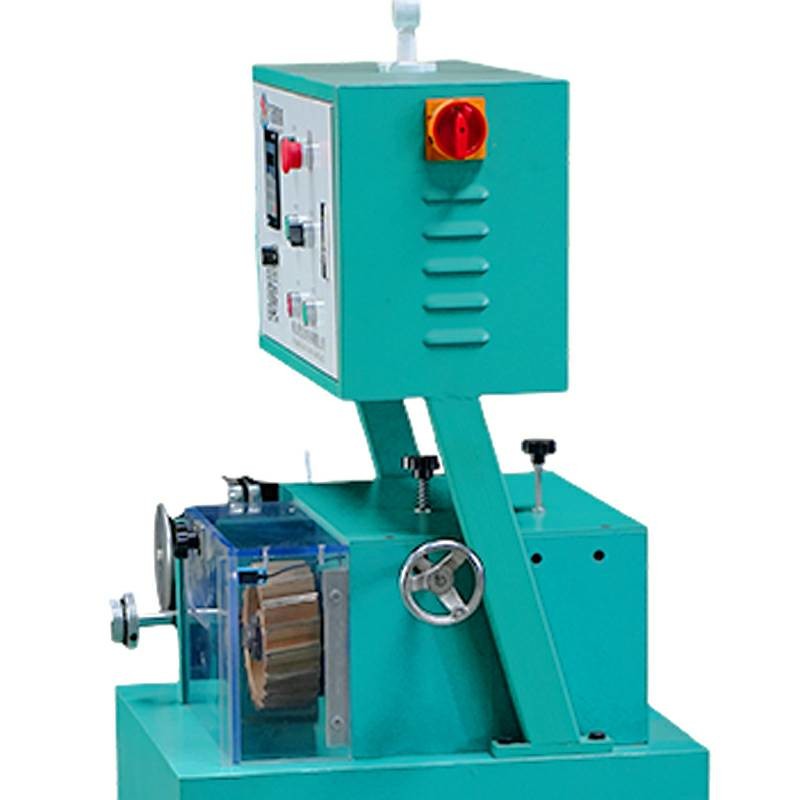

Polyester Waste Plastic Recycling Equipment Granulator Machine
Advantages:
1,Energy saving and environmental protection:
The Plastic Granulator Machine is small in size and easy to install. There is no need to heat and no emissions during production, and only a single motor (3kw-7.5kw) is used as power, and the energy consumption is low.
2,Humanized design:
It's simple to operate,you only need to send the edge material into the port to start it.The Plastic Granulator Machine is equipped with multiple alarm protection devices.
3,Good granulation effect:
The Plastic Granulator Machine is cold-extruded, cutting without heating, and does not change the molecular structure and raw material mixing rate.
4,Stable and efficient:
The granulator is very small, the speed is controlled, and the maximum output is 200m/min,150kg/h.
Features:
Because this Plastic Granulator Machine presses the film directly and does not change the chemical composition,the granular product can be recycled efficiently,The main motor Cai Yong frequency converter adjusts the speed, saves energy, can adjust the speed steplessly, is conducive to environmental protection, simple structure, easy to operate (single-person operation), and has a high degree of automation.
Parameter | |
Power | 5.5KW |
Output | ≈150m/min |
Input | 3-P 5-1 AC380V 50Hz |
Weight | ≈410kg |
Dimension | 1050x630x1700 |
Motor | Simens |
Inverter | Simens |
Rotary Cutter | Sougan |
Bearing | SKF |
Belt | FF |
